Applied to aoto brake system, connect the brake pump and brake caliper; transmit the pressure through the hydraulic brake hose to form a braking effect and slow down or stop the car.
EMAIL:
info@orlete.comphone:

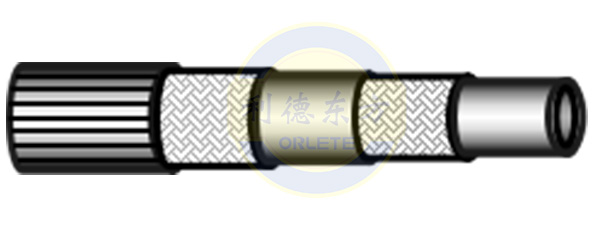

8613645184293Structure：EPDM/Synthetic fiber braided layer/Middle rubber layer/Synthetic fiber braided layer/EPDM
Medium：Polar brake fluid.(Non-petroleum based)
Temperature：-40~+150℃
Standard：Meet the standards of GB 16897, FMVSS 106, SAE J1401, ISO 3996 and major Automotive OEMs overseas.
| TYPE | I.O mm |
O.D mm |
Max W.P MPa |
Min B.P MPa |
Minimum Bending Radius mm |
Max expansion ml/m |
||
| 6.9MPa | 10.3MPa | 20MPa | ||||||
| 3310 | 3 | 10 | 10 | 70 | 38 | ≤0.45 | ≤0.55 | ≤1.10 |
| 5001 | 3 | 10 | 10 | 70 | 38 | ≤0.45 | ≤0.55 | ≤1.10 |
| 5002 | 3 | 10 | 10 | 70 | 38 | ≤0.45 | ≤0.55 | ≤1.10 |
| 5011 | 3 | 10 | 10 | 70 | 38 | ≤0.35 | ≤0.50 | ≤1.05 |
