Five-Layer Structure Air Conditioning Hose

Application:

Applied to hose assembly for aoto air conditioning system.

Send Email Inquiry Now

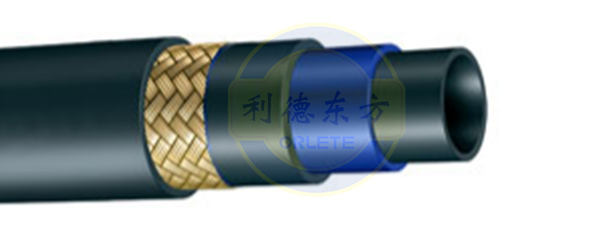

Structure：EPDM/Nylon barrier layer/EPDM/PET/EPDM

Medium：HFC-134a；HFO-1234yf

Temperature：-40℃～＋125℃

Standard：QC/T 664-2000、SAE J3062-2015、SAE J2064-2015、Q/JLYJ7110418B-2017

Appearance ： Smooth or wrapped

Parameter

TYPE I.O
mm		 D.O
mm		 Max W.P
MPa		 Min B.P
MPa		 Package length
m
KG0815 8.2 15.2 3.5 14.7 100
KG1018 10.3 18.5 3.5 14.7 100
KG1119 11.2 19.5 3.5 14.7 100
KG1320 13.1 20.2 3.5 14.7 100
KG1623 15.8 23.5 3.5 12 100
KG1928 19 28 1.5 12 50
KG2232 22.2 32 3.5 12 50
KG2839 28 39 1.5 12 50
